Anti Corrosion 1 5v Pressure Sensor With M12x1.5 Quick Connection

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNK811
Supply Ability :	2000 Piece/Pieces per Month Pressure Sensor
Price :	$9.00 - $16.00/Pieces

Add to Cart

Product Details
Company Profile

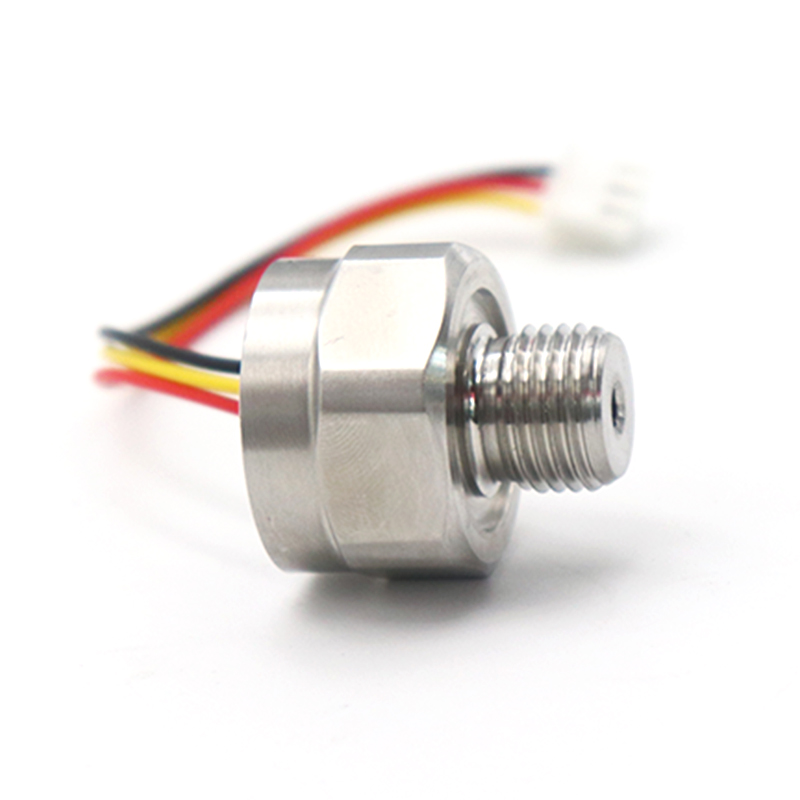

Anti Corrosion 1 5v Pressure Sensor With M12x1.5 Quick Connection

1-5V Anti-corrosion Pressure Sensor With M12*1.5 Quick Connection

WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.

Application

WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;

•Liquid level, volume or mass measurement;

•Integrated in a variety of user-defined solutions;

•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc

1-5V Anti-corrosion Pressure Sensor With M12*1.5 Quick Connection
Applicable media	Liquid, Gas
Pressure Range	-100kPa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa,1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa(bar and psi unit available)
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Customization Connector, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Process Connection

Anti Corrosion 1 5v Pressure Sensor With M12x1.5 Quick Connection

Ordering Sheet

Model	Product description
WNK811	Pressure Transducer
Code	Pressure type
A	Absolute pressure
G	Gauge pressure
S	Sealing pressure
Code	Accuracy
F	0.5%
O	1%
Code	Sensor range
A1	0-1.0~10KPa
A2	0-10~35KPa
A3	0-35~100KPa
A4	0-100~400KPa
A5	0-400~600KPa
A6	0-0.6~1.0MPa
A7	0-1.0~2.5MPa
A8	0-2.5~6.0MPa
A9	0-6.0~10MPa
A10	0-10~25MPa
A11	0-25~40MPa
Code	Output
O1	4…20mA
O2	1-5V
O3	0.5-4.5V
O4	I2C
O5	0-5V
O6	0-10V
Code	Process connection
P1	G1/8 male
P2	G1/4 male
P3	1/4 NPT male
P4	M10*1
P5	Customization
Typical model:WNK811 GFA6O3P1

Our Company

Packing&Shipping

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
