    316SS Flush High Temperature Pressure Transmitter With Heat Sinks

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK805
    Supply Ability : 2000 Piece/Pieces per Month High Temperature Pressure Sensor
    Price : $45.00 - $65.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    316SS Flush High Temperature Pressure Transmitter With Heat Sinks

    4-20ma 1-5v Customized High Temperature Flush Pressure Sensor with Heat Sinks

    Specifications

    WNK805 Gauge/Absolute Pressure Transmitter

    WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably


    Product Features

    1.High performance piezoresistive silicon pressure sensor
    2.Optional 4~20mA, 0~5V, 1~5V, 0~10V outputs
    3.OEM, ODM & customization available
    4.Stainless steel 316L housing
    5.Intrinsic safety and explosion-proof certificates
    6.High protection: IP65
    7.Suitable for air, steam, water and fuel oil application
    8.ISO9001(2015) certificate
    Technical Data

    2-Wire Signal Output hydraulic pressure regulator with lcd display
    Applicable media
    Liquid, Gas, Steam
    Pressure measurment
    Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
    Pressure range
    0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
    Output signals
    4~20mA, 1-5V for optional
    Accuracy
    0.2, 0.5
    Stability
    ±0.25% FS/year
    Zero drift
    50% of full range span.
    Max overload
    200% of sensor range
    Display
    LED (Optional)
    Housing material
    304 stainless steel
    Mechanical connection
    M20×1.5; 1/2-18NPT, 1/4NPT, Customize
    Power supply
    Non-explosion: 10.5~45V DC
    EEX ia:10.5~30 V DC
    Ambient temperature
    -40~125℃
    Process temperature
    -40~125℃

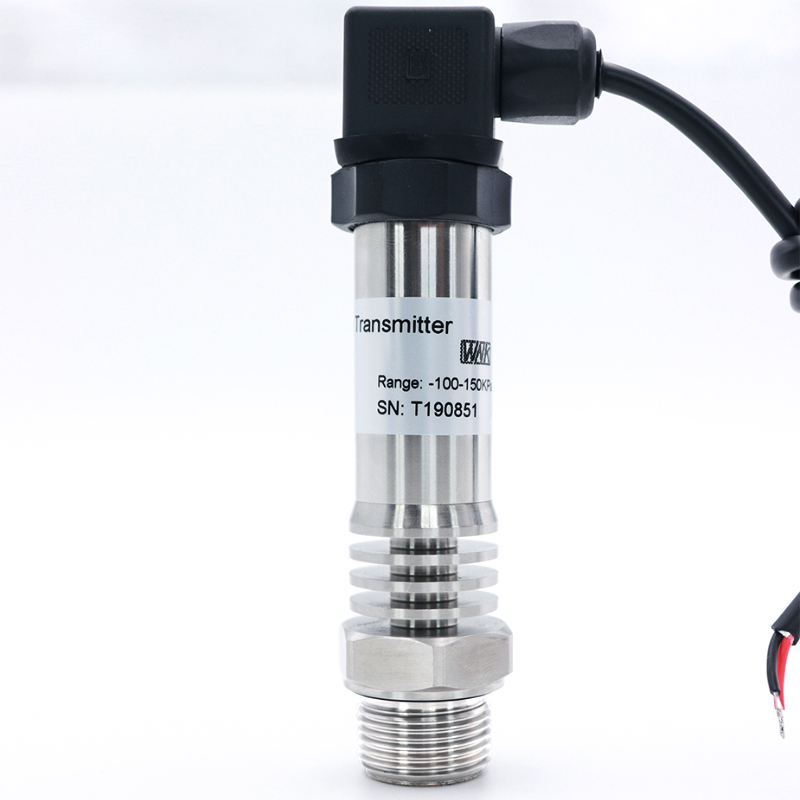

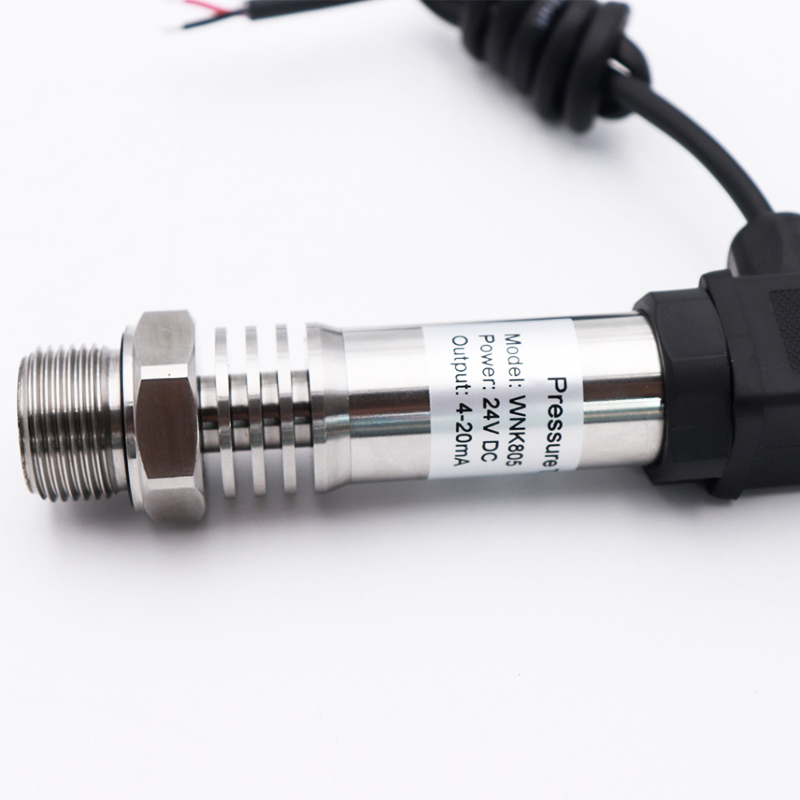

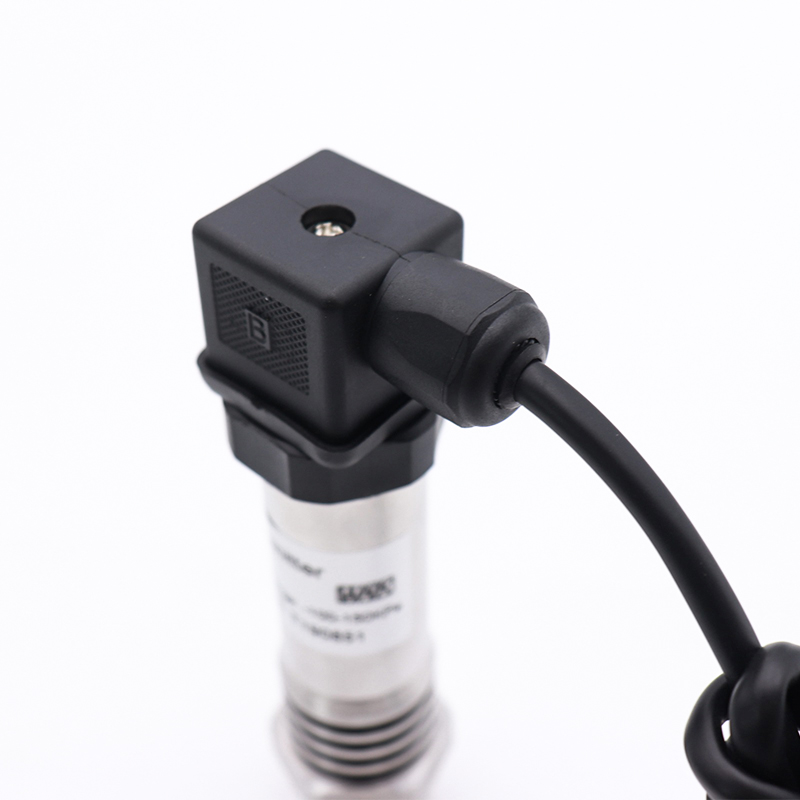

    Product Show

    316SS Flush High Temperature Pressure Transmitter With Heat Sinks316SS Flush High Temperature Pressure Transmitter With Heat Sinks316SS Flush High Temperature Pressure Transmitter With Heat Sinks316SS Flush High Temperature Pressure Transmitter With Heat Sinks316SS Flush High Temperature Pressure Transmitter With Heat Sinks316SS Flush High Temperature Pressure Transmitter With Heat Sinks

    Hot Product

    316SS Flush High Temperature Pressure Transmitter With Heat Sinks


    Company Information

    316SS Flush High Temperature Pressure Transmitter With Heat Sinks


    Exhibition

    316SS Flush High Temperature Pressure Transmitter With Heat Sinks



    Certification

    316SS Flush High Temperature Pressure Transmitter With Heat Sinks


    316SS Flush High Temperature Pressure Transmitter With Heat Sinks


    316SS Flush High Temperature Pressure Transmitter With Heat Sinks


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea.
