    WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

    Low Cost Brass Ceramic Capacitive 0.5-4.5V Pressure Sensor For Air Gas Water

    Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

    This product is in stock, please place an order directly.

    If you have any other questions, please feel free to contact us.


    Applicable mediaLiquid, gas and steam
    Pressure range0-10bar,0-20bar
    CellCeramic capacitive pressure sensor
    Pressure measurmentGauge Pressure, Sealing pressure
    Output0.5-4.5V
    Power supply

    4.75-5.25 VDC

    Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
    Compensation temperature-20~70ºC
    Ambient temperature-40~110ºC
    Working temperature-40~110ºC
    Temperature drift(zero)±0.15% F.S. (-20~70ºC)
    Temperature drift(full range)±0.15% F.S. (-20~70ºC)
    Electrical connectionParkard/ Cable Outlet
    Mechanical connection1/4 NPT, G1/4
    Housing materialBrass

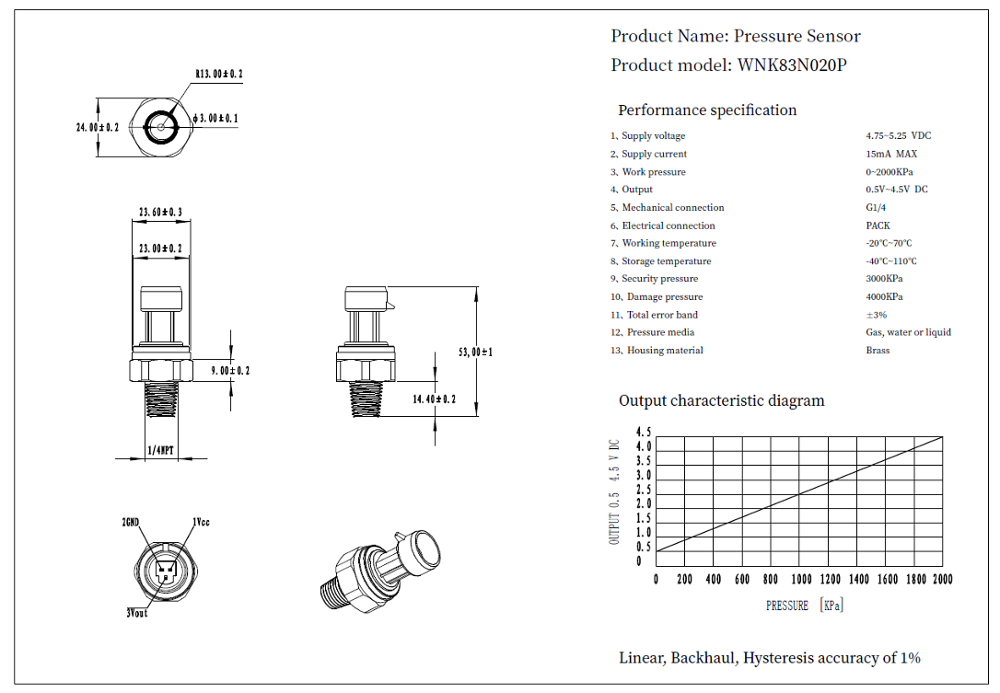

    Dimension

    WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

    WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

    WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar


    Product Show



    Applications


    Company Information

    WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

    Packaging & Shipping

    WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 BarWNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea.
