    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK805
    Supply Ability : 2000 Piece/Pieces per Week Flush Diaphragm Pressure Transmitter
    Price : $40.00 - $80.00/Pieces
    MOQ : 1 PC
    • Product Details
    • Company Profile

    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel

    Explosion-Proof Flush Diaphragm 4-20mA Sanitary Pressure Transmitter

    WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)

    WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably, it is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.

    WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)
    Applicable media
    Liquid, Gas, Steam
    Pressure measurment
    Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
    Pressure range
    0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
    Output signals
    4~20mA, 1-5V for optional
    Accuracy
    0.2, 0.5
    Stability
    ±0.25% FS/year
    Zero drift
    50% of full range span.
    Max overload
    200% of sensor range
    Display
    LED (Optional)
    Housing material
    304 stainless steel
    Mechanical connection
    M20×1.5; 1/2-18NPT, 1/4NPT, Customize
    Power supply
    Non-explosion: 10.5~45V DC
    EEX ia:10.5~30 V DC
    Ambient temperature
    -40~85℃
    Process temperature
    -40~85℃

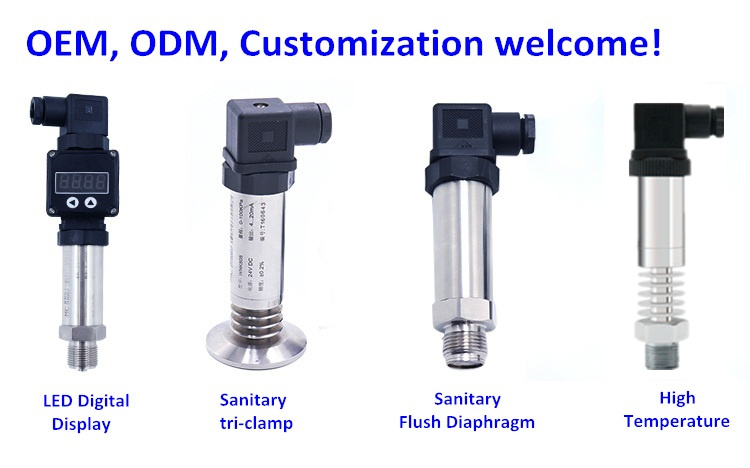

    Product Show

    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel

    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel
    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless SteelExplosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel
    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless SteelExplosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless SteelExplosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel

    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel
    Hot Product

    Explosion Proof Sanitary Pressure Transducer 4-20mA 304 Stainless Steel


    Company Information

    Exhibition



    Certification


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea.
