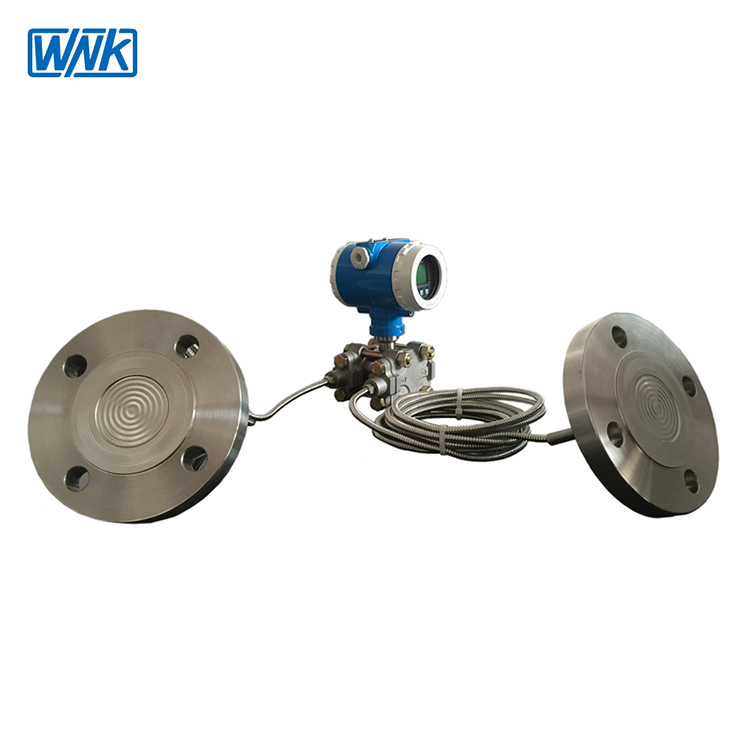

Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas

Product Categories

Hefei WNK Smart Technology Co.,Ltd

Contact Now

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNK58
Supply Ability :	2000 Piece/Pieces per Month 4-20ma pressure transmitter
Price :	$200.00 - $600.00/Pieces

Add to Cart

4-20ma Double Flange Differential Pressure Transmitter For Liquid and Gas

Features	Applications:
1. High reference accuracy up to 0.075%, higher on request.	Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Range down ratio 100:1; higher on request.	Level measurement in liquids.
4. Replaceable display unit & electronic module.	High process temperatures up to 280ºC with diaphragm seals.
5. Universal electronics.	It can be used below particular occasiaon
6. Menu-guided operation.	1. Need to isolate the high temperature medium with transmitter
7. Factory default data recovery is supportive	2. The measuring medium is corrosive to the transmitter
8. Hart, PROFIBUS-PA or FF protocol for option.	3. The measuring medium solidification or crystallization due to environmental or temperature changes
8. Hart, PROFIBUS-PA or FF protocol for option.	4. Suspended liquid or high viscosity medium

Technical Data

Applicable media	liquid, gas and steam
Pressure range	-100KPa~6MPa
Accuracy	0.075%, higher on request
Stability	±0.25% of URL for 1 year
Temperature drift	±0.0625% of URL/10ºC
Output signals	4~20mA, Hart, PROFIBUS-PA for option
Housing material	Aluminum 14
Mechanical connection	M20×1.5;G1/2;1/2NPT
Protection class	IP66/67
Diaphragm material	316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option
Fluid filled	Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option
Ex-proof	Exia II CT4, other option per request
Power Supply	10.5-55V DC 10.5-30V DC
Ambient temperature	-40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature	-45 to 85ºC,-40 to 80ºC for LCD header

Ordering Sheet

Double flange mounted pressure transmitter
