Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers

    Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers
    • Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers
    • Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers
    • Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers
    • Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers
    • Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers
    • Buy cheap Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas from wholesalers

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Ask Lasest Price
    Certification : CE, ROHS
    Brand Name : WNK
    Model Number : WNK80MA
    Supply Ability : 1000 Piece/Pieces per Week
    Price : $12.00 - $19.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

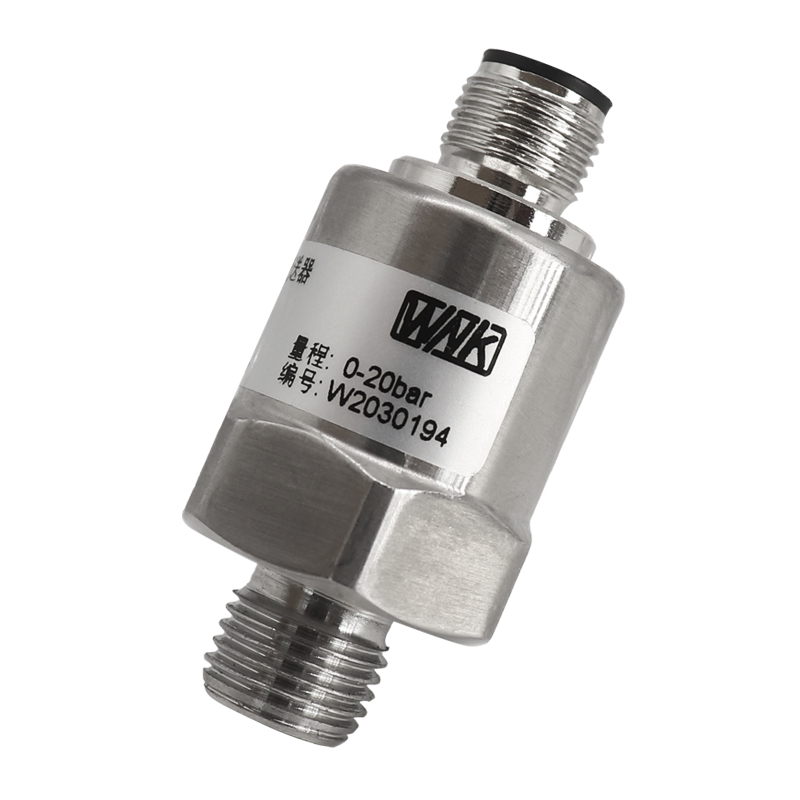

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    4-20mA I2C 0-10V Ceramic Capacitive Water Pressure Sensor For Liquid Gas


    WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

    With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

    application

    Liquid level, volume or mass measurement;

    Integrated in a variety of user-defined solutions;

    Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;


    Applicable mediaLiquid, gas and steam
    Pressure range0-20kPa~50MPa
    CellCeramic capacitive pressure sensor
    Pressure measurmentGauge Pressure, absolute pressure and sealing pressure
    Output4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
    Power supply24VDC/12VDC/5VDC/3.3V
    Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
    Compensation temperature-20~85ºC
    Ambient temperature-40~125ºC
    Working temperature-40~125ºC
    Temperature drift(zero)±0.15% F.S. (-20~85ºC)
    Temperature drift(full range)±0.15% F.S. (-20~85ºC)
    Electrical connectionParkard, Cable outlet, M12, mini DIN43650
    Mechanical connectionG1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
    Housing material304 stainless steel(316SS for inner core)
    ProtectionIP65

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas


    Product Show

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid GasCeramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid GasCeramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid GasCeramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid GasCeramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas


    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas


    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas


    Company Information

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Packaging & Shipping

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas

    Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas


    FAQ

    Q: Are you manufacturer or trading company?

    A: We are professional pressure/level/temperature measurement manufacturer since 2004.

    Q: What’s your quality control system?

    A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Can we use our logo on the products? Do you provide customized products?

    Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

    Q: What is yor MOQ?

    A: We have no MOQ limits, small quantity order is acceptable.

    Q: What's the transport?

    A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
