CE Electronic Water Pressure Sensor / Absolute Pressure Transmitter

Ask Lasest Price
Certification :	CE, ROHS
Brand Name :	WNK
Model Number :	WNK80MA
Supply Ability :	2000 Piece/Pieces per Month Absolute Pressure Transmitter
Price :	$12.00 - $26.00/Pieces

Add to Cart

Product Details
Company Profile

CE Electronic Water Pressure Sensor / Absolute Pressure Transmitter

4-20ma 0.5-4.5V Water Pressure Sensor Absolute Pressure Transmitter Price

Applicable media	Liquid, gas and steam
Pressure range	0-20kPa~50MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dryceramic capacitive pressure sensor. It has features of anti corrosion, anti-wear, shock resistance and vibration resistance. lts anti-overload capacity is 5~10 times of therange, completely solved poor overload in small range of other sensors. ln addition to general ranges of normal sensors, itsmost outstanding characteristic is the positive and negativegauge pressure function. As high output and wide range of itscore ceramic capacitive sensor, WNK8OMA is especially suitablefor harsh industrial environment pressure measurement.

CE Electronic Water Pressure Sensor / Absolute Pressure Transmitter

Product Show

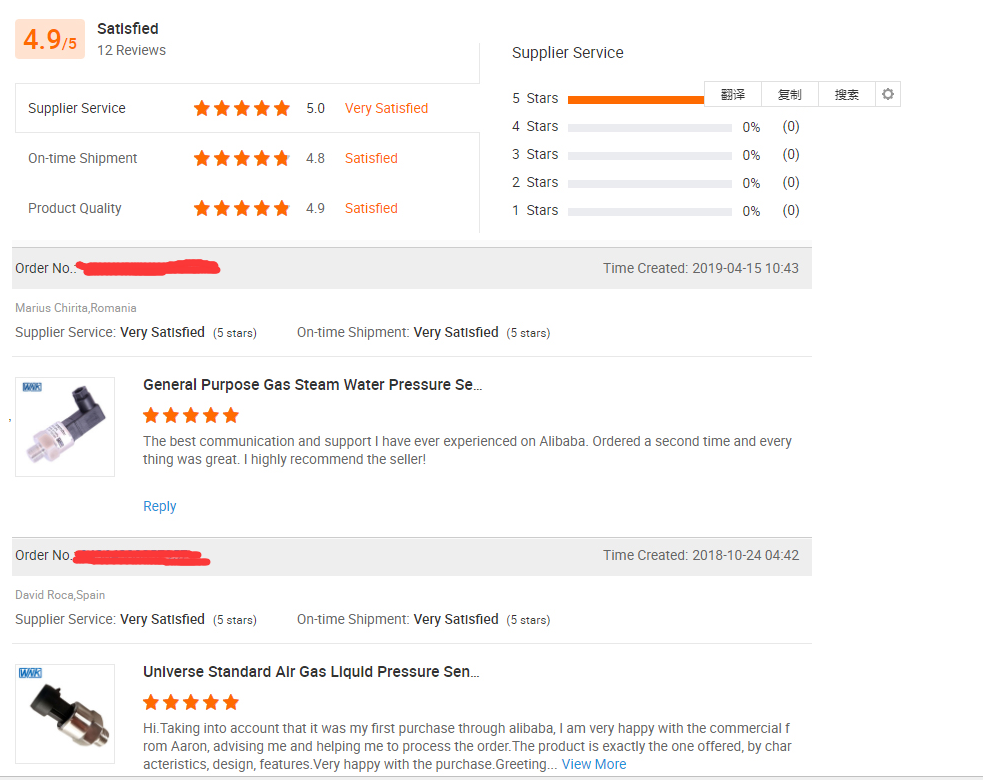

Customer Feedback

Recommend Products

Company Profile

Packing & Delivery

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
