    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor

    Ask Lasest Price
    Brand Name : WNK
    Model Number : W19
    Supply Ability : 10000 Piece/Pieces per Month pressure sensor 0-10v
    Price : $12.00/Pieces >=10 Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    MOQ : 1set
    • Product Details
    • Company Profile

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor

    Diffusion Silicon Oil-filled Pressure Sensor for Fresh and Waste Water Measurements


    WD19 series is a 14-bits digital output pressure sensor, supporting I2C interface protocol. The external pressure is passed to sensitive elements through 316L stainless steel diaphram and internal silicon oil. Thus WD19 sensors can be used to measure all pressure media compatible with 316L stainless steel.
    The series sensor realizes pressure and temperature calibration and compensation via a specially customized integrated circuit. It outputs 10%-90% digital signal as well as digital output of temperature signal.


    >> Main Features

    1. High stability and high accuracy of 0.2%FS, 0.5%FS
    2. Low cost OEM
    3. Suited for pressure range: -100KPa~60MPa
    4. Wide temperature compensation range: total error <1%
    5. Measurable of corrosive media ( media compatible with 316L)
    6. Standard mounting size- diameter 19mm
    7. Various outputs: 4~20mA, SPI, I2C, 0.5-4.5V, 0-5V, 1-5V, 0-10V and customization


    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure SensorSilicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure SensorSilicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure SensorSilicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure SensorSilicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor

    Technical Parameters

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor


    Application:


    1. Pressure measurement of gas, vapor or liquid in various areas;
    2. Liquid level, volume or mass measurement;
    3. Integrated in a variety of user-defined solutions.

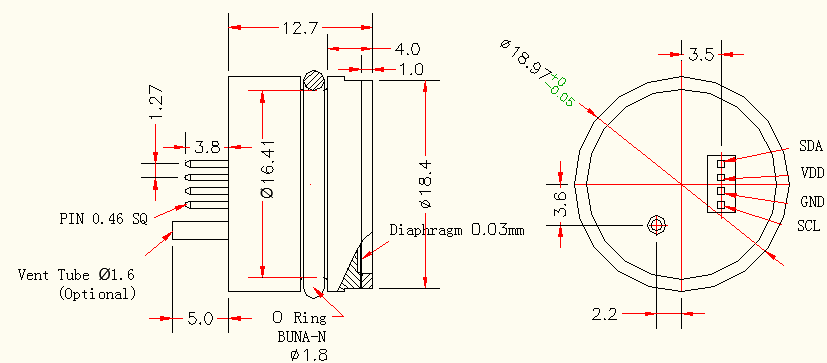

    >> Dimensions

    Remark:Ribbon Cable or Connect Pins are optional for all models
    Ribbon Cable

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor


    Connect Pin
    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor

    Hot Product

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor


    Company Information

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor


    Exhibition

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor



    Certification

    Silicon Oil Filled Pressure Sensor 0.5% FS Miniature Differential Pressure Sensor


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea
