WNK83mA 0.5-4.5v Small Brass Water Pressure Sensor For Air Gas

0.5-4.5V Low Cost Brass Pressure Sensor For Water Measurement

Model WNK83mA sensor is an economical pressure sensor specially developed by WNK sensor.

It uses a ceramic induction core and a dedicated ASIC conditioning circuit.

The housing is made of brass and is compact structure, light weight, easy to install and replace, anti-vibration.

For analog signal inputs, the pressure sensor can change the frequency based on the analog input signal.

If the pressure is too high, the actuator will run slowly and vice versa.

In this case, the pressure of the constant pressure water supply system can be adjusted by setting a preset value.

The role of the pressure gauge throughout the control system is on and off.
The pressure sensor not only controls but also regulates the entire control system.
So the pressure sensor will be more suitable for the application of constant pressure water supply systems.

Applicable media	Liquid, gas and steam
Pressure range	0-1MPa,0-2MPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Compensation temperature	-20~70ºC
Ambient temperature	-40~110ºC
Working temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~70ºC)
Electrical connection	Parkard,Direct cable
Mechanical connection	1/4NPT,G1/4
Housing material	Brass

Product Show

WNK83mA 0.5-4.5v Small Brass Water Pressure Sensor For Air Gas

Hot Product

Q: What's your quality control system?

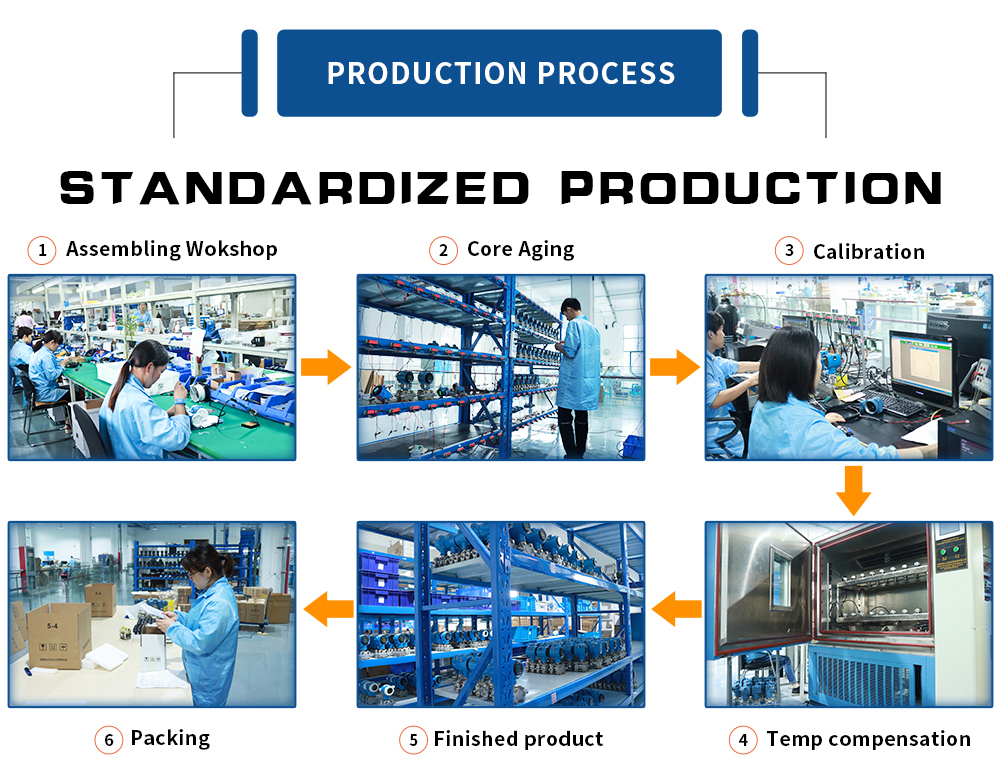

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
