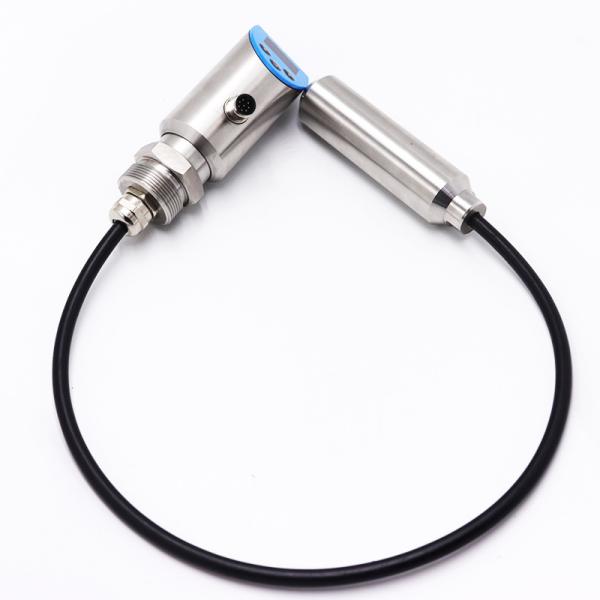

4-20ma Output Smart Electronic Digital Level Switch Stainless Steel
Submersible Level Switch
SLS Intelligent Level Switch is designed for level monitoring and
measurement of liquid and oil media. It is applied to general
industry such as tank, case, liquid cell and deep well. It is level
switch, transmitter and display in one device. In its standard
configuration it has optional two switching outputs (PNP or NPN),
an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as
well as with RS485 Link.
The level switch SLS takes the high integrated ARM industrial-grade
MCU as the core. The SLS ensures fast-speed and precise level
measurement and switch movement by carefully adjustment and
combining high-precision AD switch and high stabile pressure
sensor. The setup using the three big back-lighted buttons and the
display on machine make it very easy for on-site parameters
setting.
Quick Information:
- Liquid and oil media level measurement
- PNP switching, voltage and current outputs
- Support MODBUS communication
- Switching points settable
- Switching can be set normally open / normally closed
- Supporting Switching delay
- Analog output span settable
- High light switch indicating
- OLED self-luminous display
- Display turnable 180°
- Housing with electrical connection against process connection
rotatable 330°
- Media density settable
Detailed Technical Info:
| Measuring range | 0…1mH2O to 100mH2O |
| Accuracy | ≤0.5%FS |
| Supply Power | 12…30V DC |
| Temp. Error | ±0.02%FS/℃ |
| Long-term Stability | ±0.3%FS/Year |
| Analog output accuracy | ±0.2%FS |
| Measuring Media | Water, mineral-based hydraulic fluid and Synthetic oil |
| Wetted material | Stainless steel, Nitrile Butadiene Rubber and PTFE |
Output Configurations
| switching+voltage+ communication | 2×PNP + 0V～5VDC/10VDC + MODBUS |
| switching+current+ communication | 2×PNP + 0mA/4mA～20mADC + MODBUS |
| Switching current | 1.0A(Max.) |
| Switching type | normally open , normally closed (settable) |
| Switching respond time | ＜10ms |
| Switching delay | 0.00s～1000.0s |
| Switching motion mode | delay or windows mode |
| Analog signal output and maximum ohmic load RL | Current output | 0/4…20mA,20…4/0mA RL≤0.5kΩ |
| Voltage output | 0…5/10V,5/10…0V RL>10kΩ |
| Screen display | OLED |
| Menu language | Chinese,English |
| Switching instruction | 2X Red LED |
| Displaying pressure units | kPa, mm, cm, m |
| Buttons | 3X blue back-lighted touch buttons |
| Displaying supplementary variables | environment temp., analog output value, max. Peak value,mini. peak
value |
| Supplementary variables displaying mode | fixed displaying or INFO button switching Display |
| Working temperature | -30℃～80℃ |
| Media temperature | 0℃～60℃ |
| Storage temperature | -40℃～80℃ |
| Electromagnetism compatible | GB/T 17626.2/3/4-2006 |
| Shock resistance | ≤10g/10Hz...500Hz(IEC 60068-2-6-2007) |
| Vibration resistance | ≤50g/11ms(IEC 60068-2-27-2008) |
| Protection Rating | IP65 / IP68 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing
and production experience;
2. Experienced and professional R&D team to provide
customization services;
3. Producing transmitter core elements- PCB, supplying PCB for
transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa,
0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
