Piezoresistive Silicon Miniature Pressure Sensors SPI I2C 0.5-4.5VDC

Ask Lasest Price
Brand Name :	WNK
Model Number :	WD19
Supply Ability :	2000 Piece/Pieces per Month 4-20mA pressure sensor
Price :	$12.00 - $22.00/Pieces
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Piezoresistive Silicon Miniature Pressure Sensors SPI I2C 0.5-4.5VDC

0.5-4.5VDC 4-20mA SPI I2C Piezoresistive Silicon Pressure Sensor

0.5-4.5VDC, 4~20mA SPI, I2C Piezoresistive Silicon Pressure Sensor

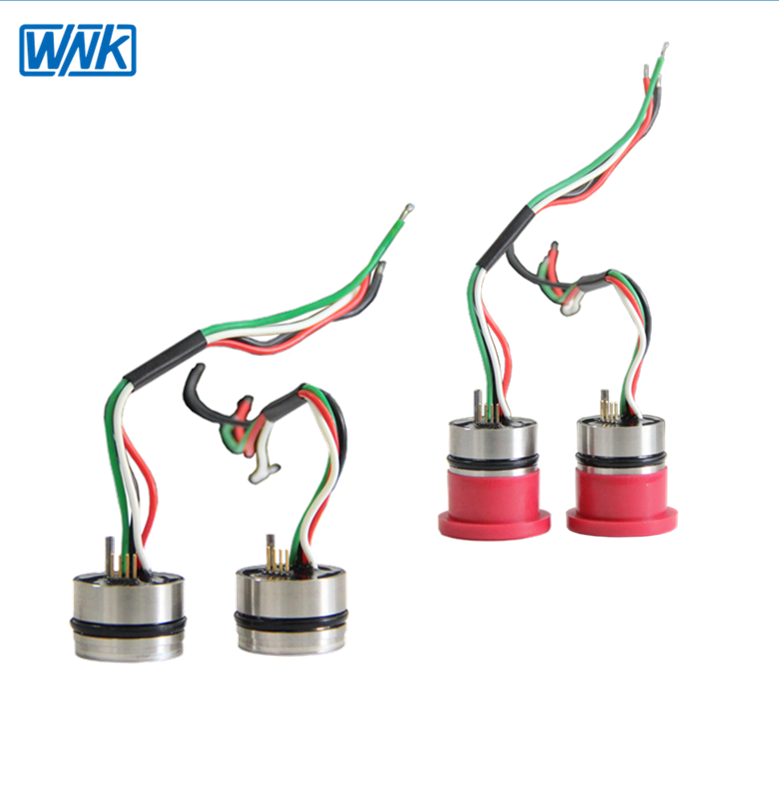

WD19 Digital I2C/SPI Output Pressure Sensor

D19 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element. This digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required.A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.

Features

High stability and high accuracy
Low cost OEM
Suited for pressure range: 0-40Kpa…7Mpa
Wide temperature compensation range: total error<1%
Measurable of corrosive media ( media compatible with 316L)
Standard mounting size
Communication: I²C or SPI

Specifications

Piezoresistive Silicon Miniature Pressure Sensors SPI I2C 0.5-4.5VDC

WNK Pressure Sensor Series

WA19 Diezoresistive Silicon Oil Filled Analog Pressure Sensor
WD19 Diezoresistive Silicon Oil Filled Digital Pressure Sensor
WA16 Diezoresistive Silicon Oil Filled Weldable Pressure Sensor
WNK80MA Small Size Oil Filled Sensor Transmitter
WA18 Diezoresistive Silicon Oilless Pressure Sensor
WNK05 Capacitive Pressure Sensor
