WNK Refrigerant HVAC Pressure Sensor 3 Wires 5 Volt max 15MPa

Ask Lasest Price
Certification :	CE, ROHS
Brand Name :	WNK
Model Number :	WNK80mA
Supply Ability :	5000 Piece/Pieces per Month Pressure Sensor for Air Conditioning
Price :	$19.00/Pieces 1-49 Pieces
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

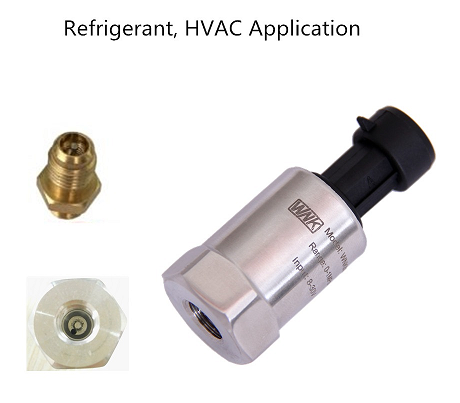

WNK Refrigerant HVAC Pressure Sensor 3 Wires 5 Volt max 15MPa

IP65 /67 4- 20mA 0.5-4.5V Refrigerant Hvac Pressure Sensor For Air Conditioning

The pressure sensor is a device that is installed on the air conditioner outdoor unit to perform pressure detection, and transmits the result of the pressure detection to the computer board to control other components of the air conditioner.

Most pressure sensors are capacitive pressure sensors that consist of two adjacent parallel diaphragms and a sturdy, compact housing.

>>> Applications

-Automobile, Compressor and Refrigeration Industry

WNK Refrigerant HVAC Pressure Sensor 3 Wires 5 Volt max 15MPa

Specifications

The AC refrigerant pressure sensor converts the refrigerant system pressure into an analog electrical signal.
Typically, it uses 3 wires for this operation: 5 volt reference, signal and ground.
These modules compare the value of the signal line to a 5 volt reference and can use this information to immediately calculate system pressure.

Model	WNK80mA,application:AC refrigerant pressure sensor
Pressure type	Gauge pressure
Accuracy	0.5%,1%
Pressure range	up to 15MPa
Power	5V
Output	0.5-4.5V
Thread	7/16-UNF female
Electrical connector	Packard

Tips Other parameters about this model can be discussed,if needed,please contact the service staff for details.

Hot Product

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
