    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor

    Ask Lasest Price
    Brand Name : WNK
    Model Number : PWCS72
    Supply Ability : 5000 Piece/Pieces per Month Ultrasonic Liquid Level Transmitter
    Price : $160.00 - $250.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor

    4-20mA Oil Tank Level Sensor Ultrasonic Liquid Level Transmitter

    Product Parameters
    Product number
    PWCS71
    PWCS72
    PWCS73
    Measuring range
    0.25-5m
    0.3-10m
    0.4-10m
    Process temperature
    (-40 ~ 70)℃
    (-40 ~ 70)℃
    (-40 ~ 70)℃
    Process pressure
    (-0.02 ~ 0.1)MPa
    (-0.02 ~ 0.1)MPa
    (-0.02 ~ 0.1)MPa
    Precision
    ±0.25% (full range)
    ±0.25% (full range)
    ±0.25% (full range)
    Process connection
    M66×2 or flange transducer
    M66×2 or flange transducer
    M95×2 or flange
    Signal output
    (4-20)mA/HART protocol (24V DC two-wire system/four-wire system)
    (4-20)mA/HART protocol
    (24V DC two-wire system/four-wire system)
    (4-20)mA/HART protocol
    (24V DC two-wire system/four-wire system)
    Protection grade
    IP 67
    IP 67
    IP 67
    Explosion-proof grade
    Exia IIB T6 Ga
    Exia IIB T6 Ga
    Exia IIB T6 Ga
    Shell material
    PA66+GF30 or PVDF
    PA66+GF30 or PVDF
    PA66+GF30 or PVDF
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    Aluminum Housing material
    The Housing is made of aluminum with specific explosion-proof function
    Two transducer options
    Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    High Technology Functions
    Echo curve display function
    False echo storage function
    Frequency adjustment function
    Noise filteringfunction
    Wide Measuring Range and High Accuracy
    Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor

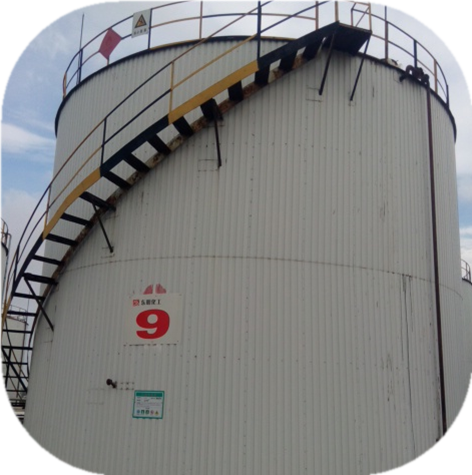

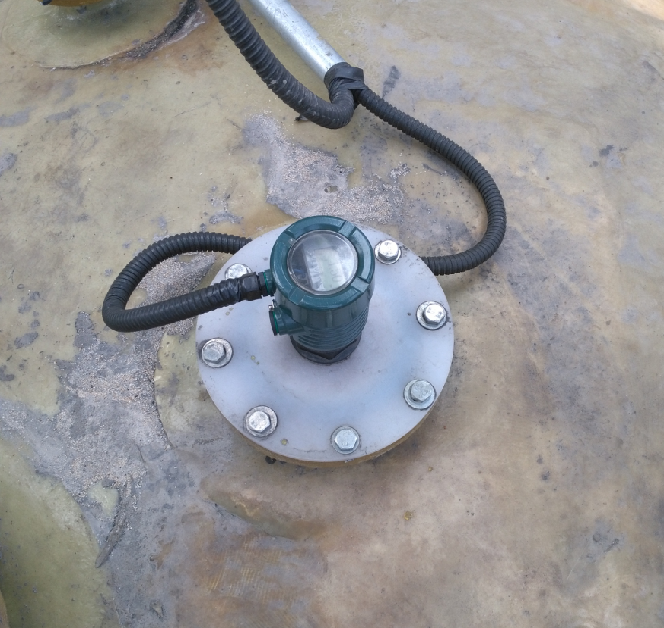

    Application Case
    Commonly used to measure water levels in wells,boreholes and water level stubs ,it is particularly suitable for the observation of water table in hydropower projects or the artificial inspection of the dam body immersion line of the earth and stone dam body
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    Installation Guide
    The transducer shall be vertical to the medium surface
    The equipment shall not be installed in the middle of the tank top
    The installation position shall avoid obstacles as much as possible
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor

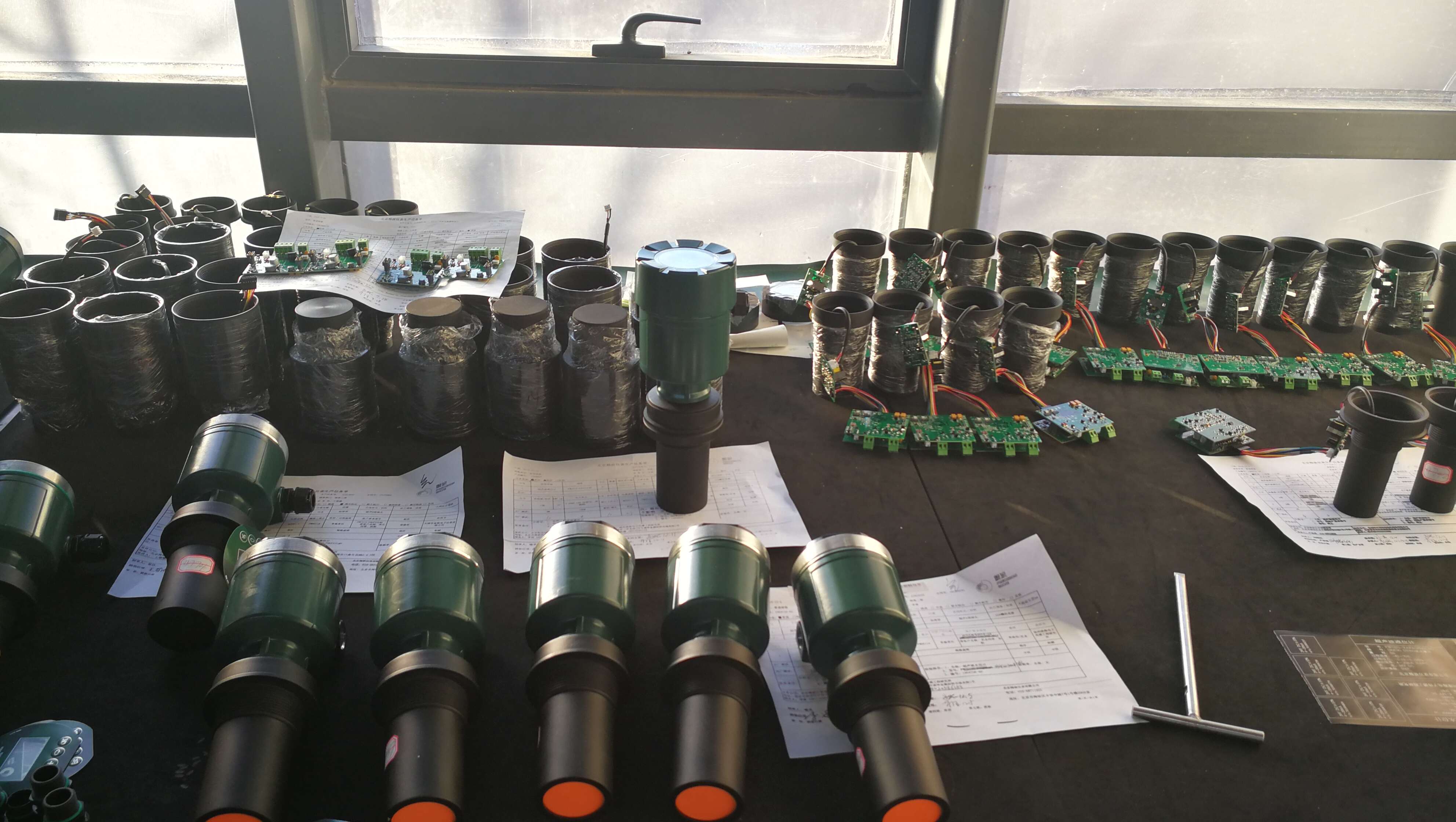

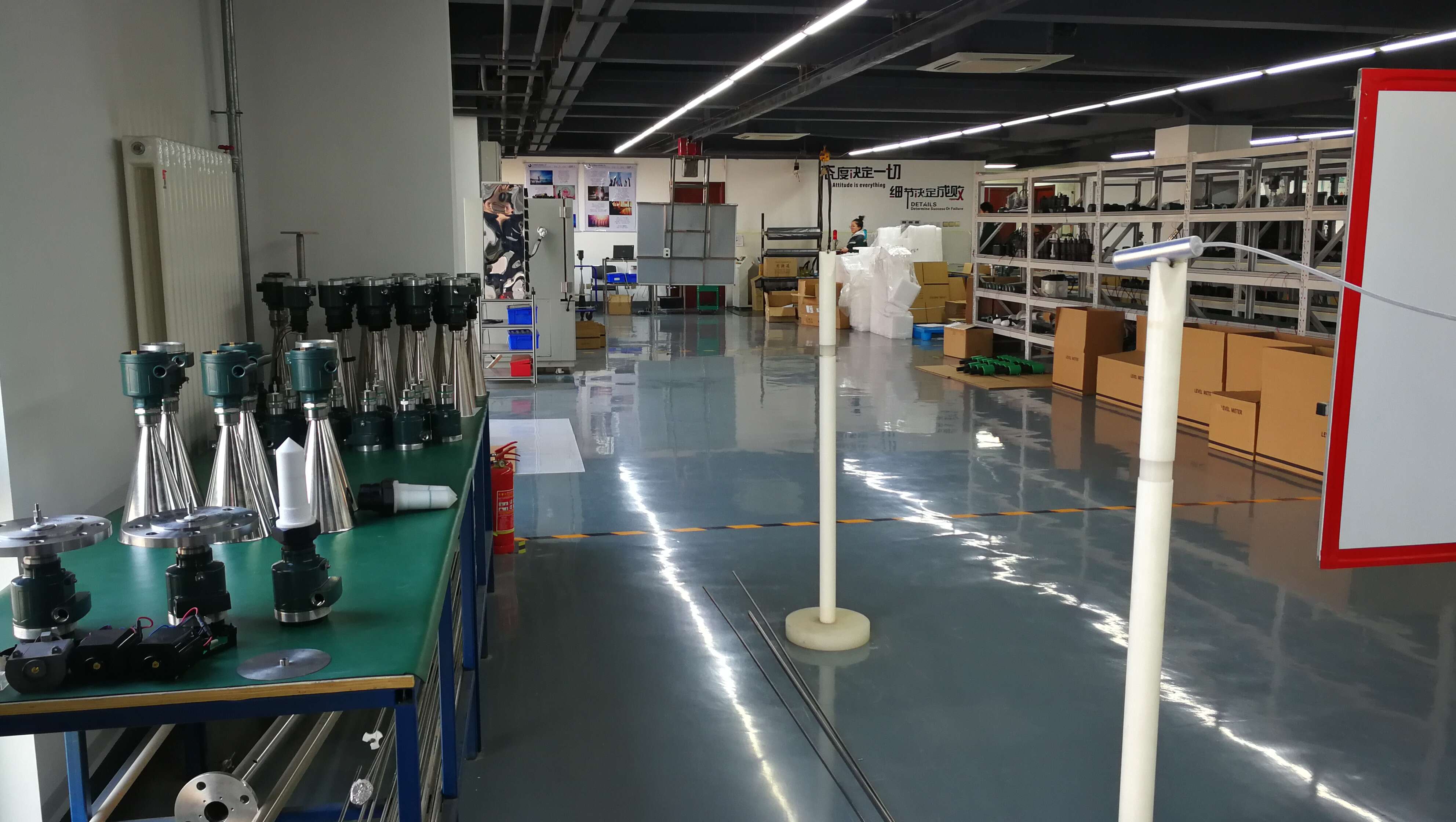

    Product Warehouse
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    Company Profile
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    Packing&Shipping
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor
    FAQ
    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
    pressure/level/temperature measuring instruments.

    Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

    A: 12 month from shipment date, for non-man-made damages.

    Q: SHIPPING AND DELIVERY

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
    Large orders are recommended to ship by sea
