    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK80mA
    Supply Ability : 2000 Piece/Pieces per Week Small Pressure Sensor
    Price : $12.00 - $19.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry

    Small I2c 4-20ma Air Oil Water Pressure Sensor For Industry


    Product Show

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry


    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry


    Small I2c 4-20ma Air Oil Water Pressure Sensor For Industry
    WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

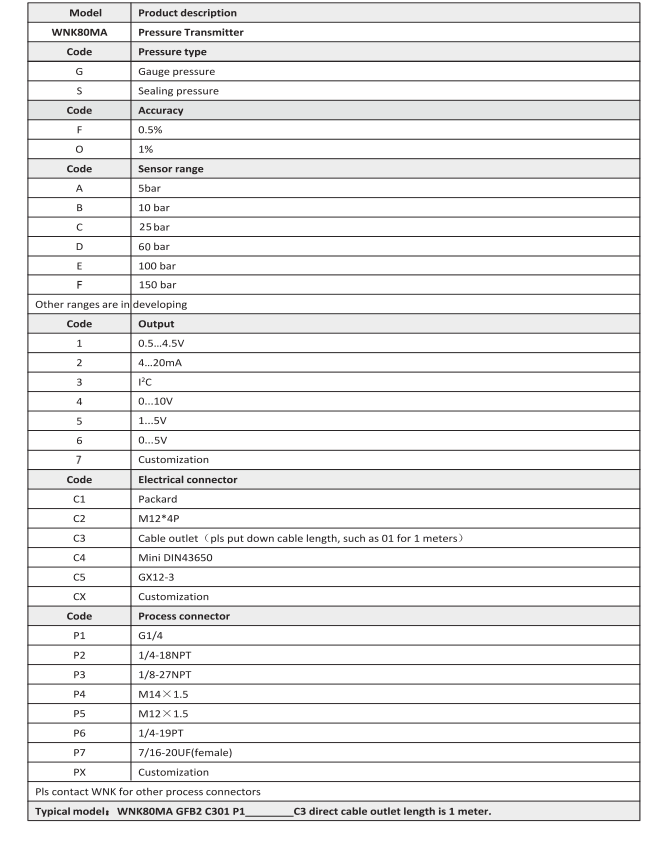

    WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
    Applicable media
    Liquid, Gas
    Pressure range
    0-7kPa~350bar
    Pressure measurment
    Gauge Pressure, Absolute pressure, Sealing pressure
    Output
    4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
    Accuracy(linearity,Hysteresis and Repeatability)
    0.5%F.S.(Typical)
    Power supply
    24VDC/12VDC/5VDC/3.3V
    Compensation temperature
    -20~85ºC
    Ambient temperature
    -40~125ºC
    Working temperature
    -40~125ºC
    Temperature drift(zero)
    ±0.15% F.S. (-20~85ºC)
    Temperature drift(full range)
    ±0.15% F.S. (-20~85ºC)
    power(electrical) connect
    Parkard, M12, DIN43650, Cable outlet
    Mechanical connection
    G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
    Housing material
    304 stainless steel(inner core is 316 stainless steel)
    Protection
    IP65
    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry
    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry
    Hot Product

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry


    Company Information

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry


    Exhibition

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry



    Certification

    4-20ma Air Pressure Transducer Sensor 304SST Housing For Industry


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea.
