PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field

Ask Lasest Price
Brand Name :	WNK
Model Number :	WLD
Supply Ability :	1000 Piece/Pieces per Month
Price :	$480.00/Pieces >=1 Pieces

Add to Cart

Product Details
Company Profile

PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field

Product Description

PTFE/PVF Liner Material High Stability Flow Meter Water Flow Sensor For Medicine Field

WLD electromagnetic flowmeter is manufactured with the latest technology with the following defects:
- Measurements are not affected by changes in fluid density, viscosity, temperature, pressure and conductivity;
- Unobstructed flow components in the measuring tube, no pressure loss, low requirements for straight pipe sections;
- Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials;
- The converter adopts novel excitation mode, low power consumption, stable zero point and high precision. The flow range can be1500:1
- The converter can be integrated or separated from the sensor;
- The converter adopts 16-bit high-performance microprocessor, 2X16LCD display, convenient parameter setting and reliable programming;
- Explosion-proof instruments can be used in corresponding explosion-proof places;
- The converter uses surface mount technology (SMT) with self-test and self-diagnosis functions;

Specifications

Maximum Flow Rate	15m/s
Nominal Pressure	DN15~DN150			4.0Mpa
		DN15~DN600			1.6Mpa
		DN200~DN1000			1.0Mpa
		DN700~DN3000			0.6Mpa
Ambient Temperature	Sensor			-25~60℃
Ambient Temperature		Coverter			-10~60℃
Liner material and fluid maximum temperature	Liner material	Separate type	Integrated type
		PTFE	100℃;150℃	70℃
		PVF	100℃;150℃	70℃
		FEP	100℃;150℃	70℃
		Neoprene	80℃;120℃	70℃
		PUR	80℃	70℃
Signal electrode form	Fixed (DN15~DN2600) Scraper(DN300-DN1600)
Electrode material	SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium
Connecting flange Material	Carbon Steel
Grounding flange material	SST 1Cr18Ni9Ti
Imported prodective flange material	DN15~DN600			SST 1Cr18Ni9Ti
Imported prodective flange material		DN700-DN3000			Carbon Steel
Protection	DN15-DN150 Separate rubber and polyurethane liner sensors			IP65.68(Special customize)
		DN200-DN2600 Separate rubber and polyurethane liner sensors			IP68 under water 10 meters
		Other sensor converter			IP65
Spacing(separate type )	The Spacing Less than or equal to 100 meters or need Special customize

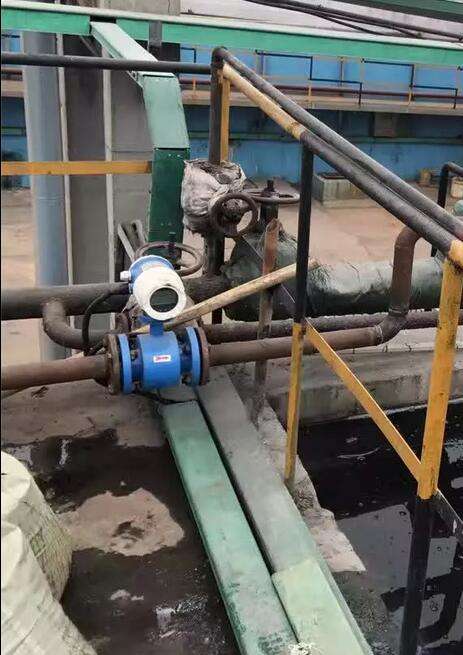

Product Application

PTFE PVF Liner Digital Liquid Flow Meter For Medicine Field

Product Show

Hot Products

Our Company

Packing&Shipping

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
