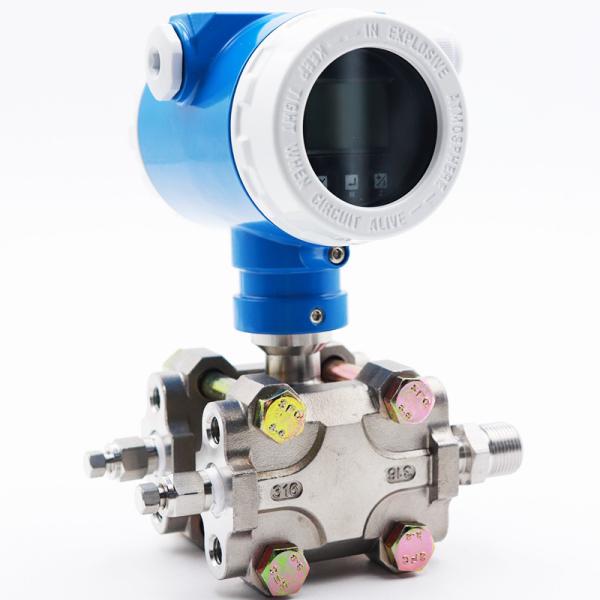

High Accuracy 4-20mA Anti-Corrosion Differential Pressure
Transmitter Industrial Gauge
WNK5 series pressure transmitter is the high-performance products
among WNK pressure transmitter series. It transforms physical
signal of pressure, differential pressure and level to standard
signal via collecting cell sensor and digital processing circuit.
WNK5 adopts advanced specified integrated circuit digital
technology to realize best uniformity of accuracy and signal. Each
set of transmitter is ambient temperature compensated, ensured
highest accuracy and lowest drift of transmitters in wide working
temperature range.
QUICK INFORMATION
1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5
years;
4. Range ratio: 100: 1;
5. Module design: Changeable electronic module;
6. Explosion Proof: Exia II CT4, CT6;
7. Water Proof: IP66/67;
8. High Temperature Resistance: High temperature up to 280 ℃ with
diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.
Application
1. Gauge and absolute pressure measurement of gas, vapour or liquid
in various processing control fields
2. Level, volume or mass measurement in liquid;
3. Working with detecting elements to measure flow of gas, vapour
and liquid ( volume and mass flow)
4. Highest measurement pressure up to 700bar.
| pressure range | -100kpa-70mpa |
| compensation temperature | -30-70C |
| media temperature | -40-120C |
| Accuracy | 0.075% |
| output signals | 4-20ma/hart/profibus-pa/customization |
| power supply | 10.5-55v dc/24v dc |
| protection class | ip66/ip67 |
| weight | about 1.7kg |
| mechanical connection | G1/2, m20*1.5,1/2npt,1/4npt,customization
|
Company information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to
producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are
completed with temperature compensation and 48 hours aging test
before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with
delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
