    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK58
    Supply Ability : 2000 Piece/Pieces per Month
    Price : $200.00 - $600.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

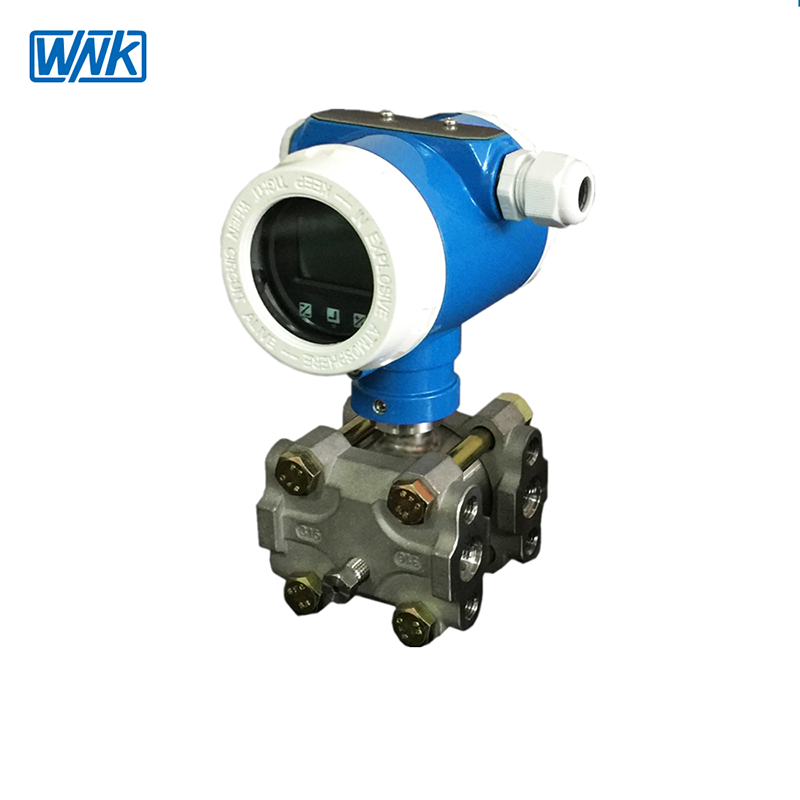

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display

    Double Flange 4-20ma/Hart Output Differential Pressure Transmitter With Ex-Proof

    WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series. It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

    WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal. Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal DisplayCapacitive Double Flange Differential Pressure Transmitter Liquid Crystal DisplayCapacitive Double Flange Differential Pressure Transmitter Liquid Crystal DisplayCapacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display


    >> Quick information

    1. High accuracy: up to 0.075%FS;

    2. Output: 4~20mA, Hart, Profibus-Pa

    3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years;

    4. Range ratio: 100: 1;

    5. Module design: Changeable electronic module;

    6. Explosion Proof: Exia II CT4, CT6;

    7. Water Proof: IP66/67;

    8. High Temperature Resistance: High temperature up to 280 ℃ with diaphragm sealing;

    9. High Pressure Ability: Max Pressure up to 700bar.

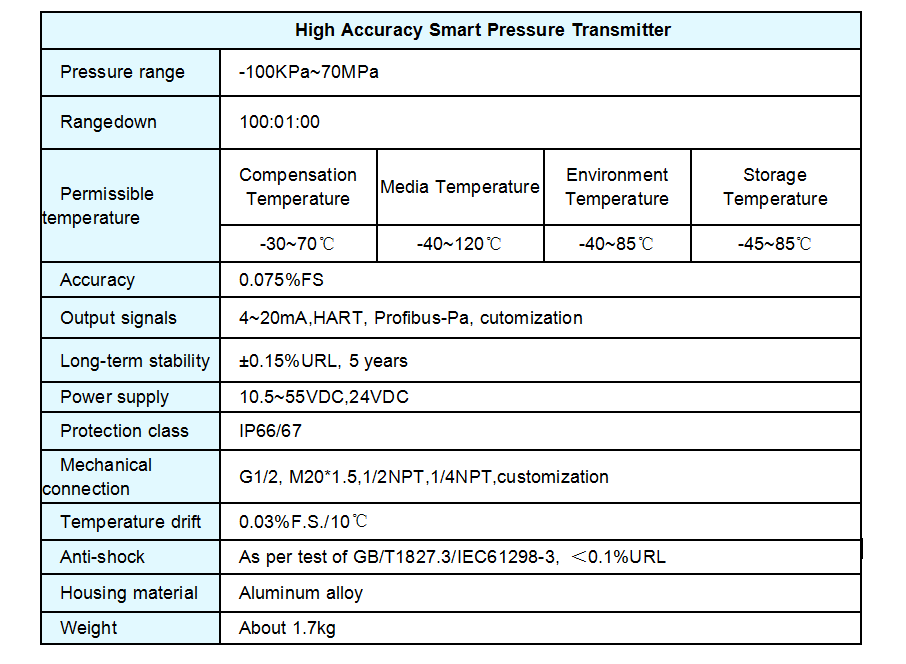

    Technical Parameters

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display


    Application:


    1. Gauge and absolute pressure measurement of gas, vapour or liquid in various processing control fields

    2. Level, volume or mass measurement in liquid;

    3. Working with detecting elements to measure flow of gas, vapour and liquid ( volume and mass flow)

    4. Highest measurement pressure up to 700bar.

    >> Dimensions

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display


    Hot Product

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display


    Company Information


    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display

    Exhibition

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display

    Certification

    Capacitive Double Flange Differential Pressure Transmitter Liquid Crystal Display

    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea
