    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK-YTS56
    Supply Ability : 5000 Unit/Units per Month
    Price : $90.00 - $245.00/Units
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    MOQ : 1 Unit
    • Product Details
    • Company Profile

    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display

    IP68 Probe Liquid Universal 4-20mA Ultrasonic Level Gauge/Level Transmitter
    Product Category
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display

    Integrated ultrasonic level gauge
    The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    Ultrasonic level gauge
    Ultrasonic level gauge is a kind of low cost measuring equipment for measuring liquid, slurry and solid on site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display

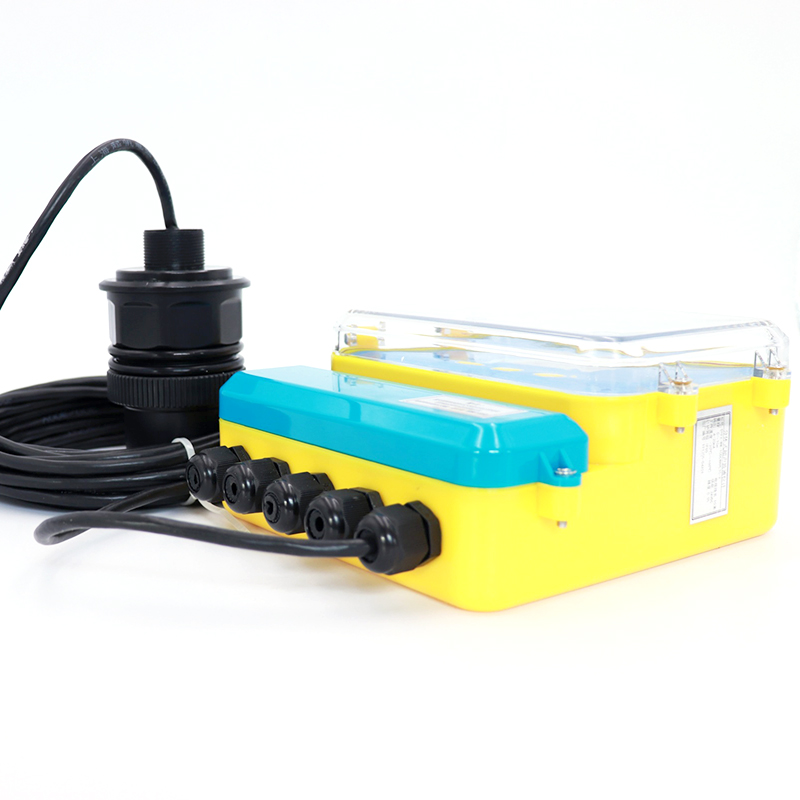

    Split-type ultrasonic level gauge
    The split ultrasonic level gauge has a separate sensor from the host, which is more suitable for installation on storage tanks, silos and brackets. It is a low-cost measuring device for measuring liquids, slurries, and solids on the industrial site. A large number of applications in the metallurgical and mechanical manufacturing industries
    Product Paramenters
    Features
    Integrated
    Range
    5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
    Measurement Accuracy
    0.5%~1.0%
    Resolution
    3mm or 0.1% (whichever is greater)
    Display
    Chinese LCD or English LCD
    Analog Output
    2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
    Digital Output
    Optional 485, 232
    Relay Output
    Optional 2 sets of AC 250V / 5A or DC 30V / 5A
    Powered
    Standard 24VDC, optional 220V AC + 15% 50HZ
    Ambient Temperature
    Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
    Protection Class
    Display instrument IP65, probe IP68
    Probe Cable
    No
    Installation Size
    Thread or flange
    Installation Guide
    The transducer shall be vertical to the medium surface
    The equipment shall not be installed in the middle of the tank top
    The installation position shall avoid obstacles as much as possible
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    Application Case
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    Hot Products
    Company Profile
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
    FAQ
    Q: ARE YOU TRADING COMPANY OR MANUFACTURER ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

    A: 12 month from shipment date, for non-man-made damages.

    Q: SHIPPING AND DELIVERY?

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
    Large orders are recommended to ship by sea
