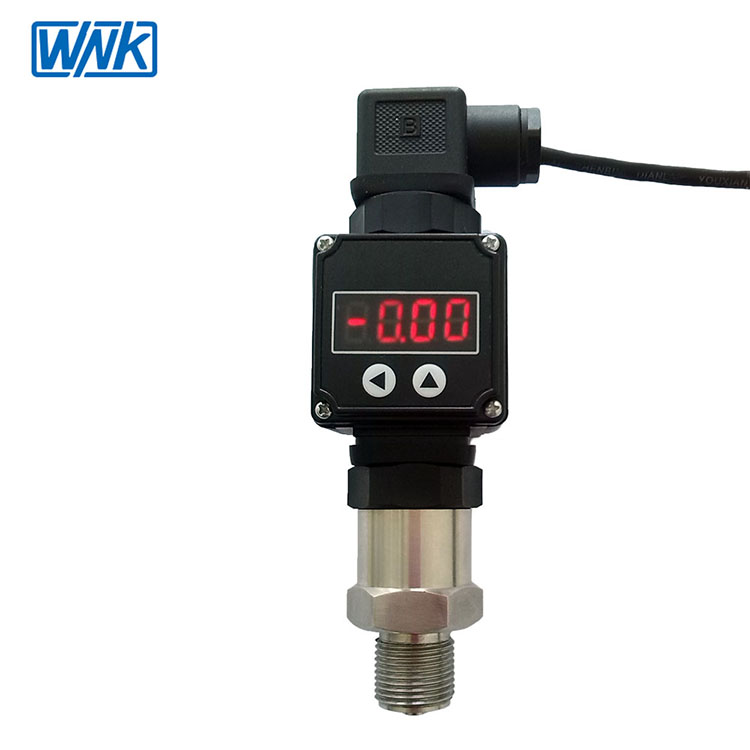

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK805
    Supply Ability : 2000 Piece/Pieces per Week
    Price : $45.00 - $65.00/Pieces
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa


    -100KPa-60MPa Factory Direct Diffusion Silicon Pressure Transmitter 4-20mA

    Silicon Flush Membrane Flush Diaphragm Pressure Sensor
    Applicable media
    Liquid, Gas, Steam
    Pressure measurment
    Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
    Pressure range
    0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
    Output signals
    Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
    Accuracy
    0.25%, 0.5%, 1.0%FS
    Stability
    ±0.25% FS/year
    Zero drift
    50% of full range span.
    Max overload
    200% of sensor range
    Display
    LED (Optional)
    Housing material
    304SS, 316L
    Mechanical connection
    M20×1.5; 1/2-18NPT, 1/4NPT, Customize
    Power supply
    Non-explosion: 10.5~45V DC
    EEX ia:10.5~30 V DC
    Ambient temperature
    -40~85℃
    Process temperature
    -40~85℃

    Features
    - Standard ranges from vacuum to 60Mpa
    - Accuracy up to ±0.25%
    - 4-20 mA 2-wire output signal, others available
    - Highly resistant to pressure spikes and vibration
    - Stainless steel case and wetted parts
    - Full range of process and electrical connections
    - Assemble to diaphragm seals for special applications
    - Suitable for gas, liquid, steam pressure measurement
    - Intelligent digital circuit with precise temperature characteristic compensation
    - Tantalum sensor contact for option for pressure measurement with corrosive media

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa



    Product Show

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPaDiffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPaDiffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPaDiffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPaDiffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa


    Company Information

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa

    Exhibition

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa


    Certification

    Diffusion Silicon Pressure Sensor vibration resistant -100KPa-60MPa


    FAQ

    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea
