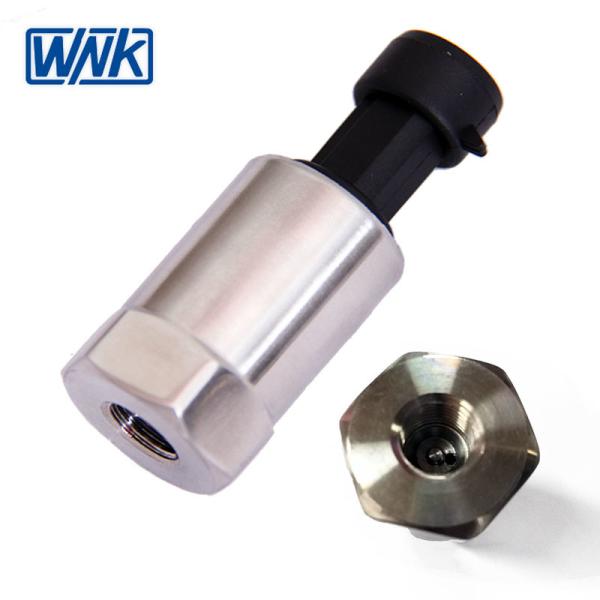

Absolute Vacuum IP65 I2C Refrigerant Pressure Sensor 304SS 20mA 4.5V

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNK80mA
Certification :	CE/ROHS
Price :	$12.00 - $19.00/Pieces
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Supply Ability :	2000 Piece/Pieces per Month 4-20mA pressure sensor
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

Absolute Vacuum IP65 I2C Refrigerant Pressure Sensor 304SS 20mA 4.5V

4-20mA 0.5-4.5V Industrial Absolute Vacuum Refrigerant Pressure Sensor

0.5-4.5V I2C Refrigerant Pressure Sensor

Product Description

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media	Liquid, Gas
Pressure range	0-7kPa~350bar
Pressure measurment	Gauge Pressure, Absolute pressure, Sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)	0.5%F.S.(Typical)
Power supply	24VDC/12VDC/5VDC/3.3V
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
power(electrical) connect	Parkard, M12, DIN43650, Cable outlet
Mechanical connection	G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP65

Air Compressor Pressure Sensor Applications

Air Compressor Pressure Sensors are pressure-sensitive electrical sensing devices used to control the operation of an air compressor. The main function of the sensor is to start the Air Compressor when the pressure in its holding tank drops below a set low point and to stop it when the pressure reaches a set maximum. This allows the compressor to maintain a constant working charge in the system, an essential criteria for industries that are heavily reliant on compressed air. The Air Compressor pressure sensor is typically mounted on the compressor assembly or in another easily accessible location, with the Air Compressor control circuit wired through its internal contacts.

Description of air compressor pressure sensors

Typically, an Air Compressor pressure sensor is used to measure the pressure of fluids (gases or liquids). Pressure is an expression of the force required to stop a fluid from expanding, and is usually stated in terms of force per unit area. A pressure sensor generates an electrical signal relating to the pressure imposed. Such a signal is normally digital or analogue, although optical, visual and auditory signals are also common.

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
