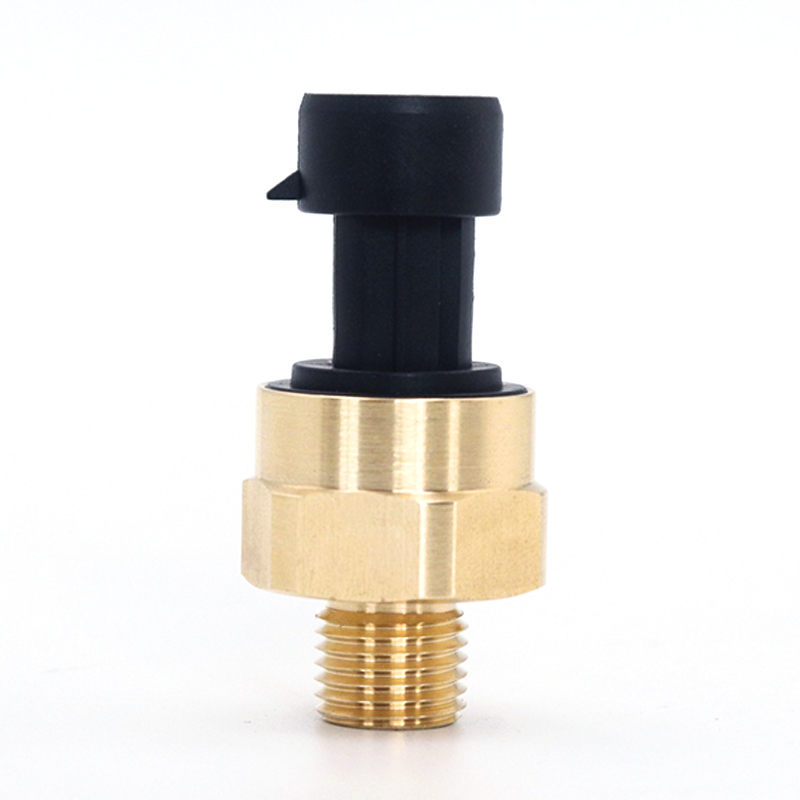

0.5 - 4.5V Output G1/4 Brass Pressure Sensor For Liquid Gas Oil

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNK83mA
Price :	$6.50/Sets
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Supply Ability :	5000/ Piece/ Month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

0.5 - 4.5V Output G1/4 Brass Pressure Sensor For Liquid Gas Oil

Low Cost 0.5-4.5V Output G1/4 Brass Pressure Sensor For Liquid Gas Oil

WNK Brass Industrial Water Pressure Sensor

Specification

WNK83MA Gauge/Sealing Pressure Sensor
Applicable media	Liquid, Gas
Pressure range	0-10bar, 0-20bar
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25VDC
Supply current	15mA Max
Accuracy(linearity,Hysteresis and Repeatability)	±1%F.S.
Total error band	±3%
Max pressure	2 times
Burst pressure	3 times
power(electrical) connection	Parkard connector, Direct cable outlet(50cm)
Process connection	G1/4, 1/4NPT
Housing material	Brass
Protection	IP65
Working temperature	-20~70℃
Storge temperature	-40~110℃

Application

WNK83MA is solution for below applications: •Pressure measurement of gas or liquid in various areas; •Liquid level measurement; •Integrated in a variety of user-defined solutions; •Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

WNK83MA is our standard compact pressure Transmitter, by using ASIC
signal conditioning chip and dry ceramic capacitive pressure
sensor. It has features of anti-corrosion,anti-wear, shock
resistance and vibration resistance. WNK83MA is especially suitable
for manufacturing of high-performance industrial control pressure
transmitter and harsh environment pressure measurement.

0.5 - 4.5V Output G1/4 Brass Pressure Sensor For Liquid Gas Oil

High Specific Performance Hvac 0.5-4.5V Brass Water Pressure Sensor For Air Gas

Applicable media	Liquid, gas and steam
Pressure range	0-2000kPa
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, Sealing pressure
Output	0.5-4.5V
Power supply	4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.
Working temperature	-20~70ºC
Ambient temperature	-40~110ºC
Temperature drift(zero)	±0.15% F.S. (-20~70ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Packard/ Cable Outlet
Mechanical connection	1/4 NPT, G1/4
Housing material	Brass

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
