Sanitary Flush Diaphragm Pressure Transmitter 4 - 20ma

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNK805
Price :	$45.00 - $65.00/Pieces
Supply Ability :	2000 Piece/Pieces per Month hydraulic pressure regulator

Add to Cart

Product Details
Company Profile

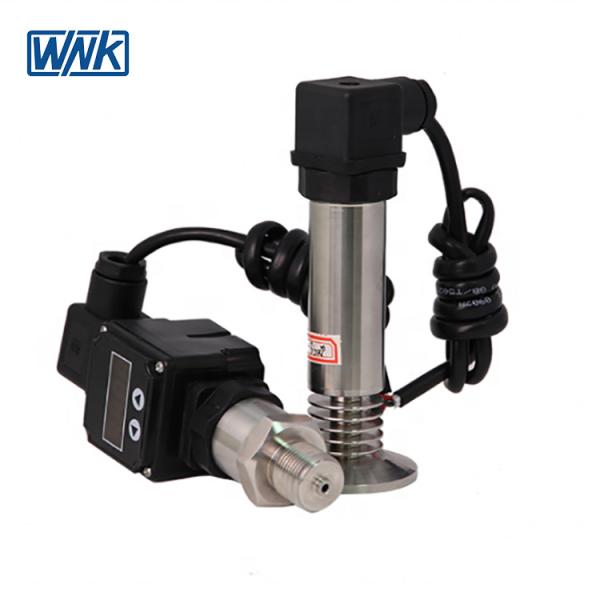

Sanitary Flush Diaphragm Pressure Transmitter 4 - 20ma

4-20ma Sanitary Flush Diaphragm Pressure Transmitter Price

Flush Diaphragm Pressure Transmitter

1. High performance piezoresistive silicon pressure sensor

2. Optional 4~20mA, 0~5V, 1~5V, 0~10V outputs

3. OEM, ODM & customization available

4. Stainless steel 316L housing

5. Intrinsic safety and explosion-proof, ISO9001:2015 certificates

6. High protection: IP65

7. Suitable for air, steam, water and fuel oil application

WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.

WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range	0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals	Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy	0.25%, 0.5%, 1.0%FS
Stability	±0.25% FS/year
Zero drift	50% of full range span.
Max overload	200% of sensor range
Display	LED (Optional)
Housing material	304SS, 316L
Mechanical connection	Clamp,Flush and Flange
Power supply	Non-explosion: 10.5~45V DC
Power supply	EEX ia:10.5~30 V DC
Ambient temperature	-40~85℃
Process temperature	-40~85℃

Features

- Standard ranges from vacuum to 60Mpa

- Accuracy up to ±0.25%

- 4-20 mA 2-wire output signal, others available

- Highly resistant to pressure spikes and vibration

- Stainless steel case and wetted parts

- Full range of process and electrical connections

- Assemble to diaphragm seals for special applications

- Suitable for gas, liquid, steam pressure measurement

- Intelligent digital circuit with precise temperature characteristic compensation

- Tantalum sensor contact for option for pressure measurement with corrosive media

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
