4-20mA 0.5-4.5V Analog Submersible Fuel Level Sensor For Liquid Water

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNK8010-TT
Certification :	CE
Price :	$35.00 - $50.00/Pieces
Payment Terms :	T/T, Western Union, MoneyGram, Paypal
Supply Ability :	3000 Set/Sets per Week water level transmitter
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

4-20mA 0.5-4.5V Analog Submersible Fuel Level Sensor For Liquid Water

4-20mA 0.5-4.5V Submersible Water Level Transmitter

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.

Output	4~20mA, 0-10mA, 0-5V, 1-5V, customization
Level range	0-0.5~200mH2O
Overload	150% of sensor range
Measuring medium	Liquid
Accuracy	±0.2%FS, ±0.5%FS
Stability	0.25%FS/ year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power Supply	24VDC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Applications

• Water tank level measurement and control.

• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features

• Adopting diffusion silicon oil-filled sensor

• Max measure range up to 200 meters or more

• High Stability, provide 0.1, 0.2, 0.5 accuracy for option

• Factory direct price

Dimensions

Product Show

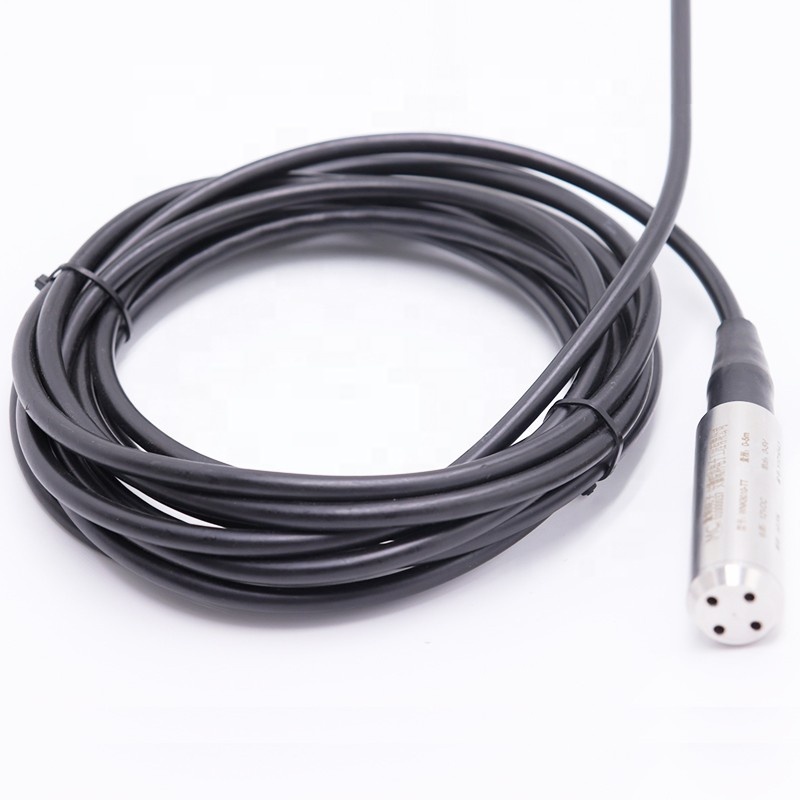

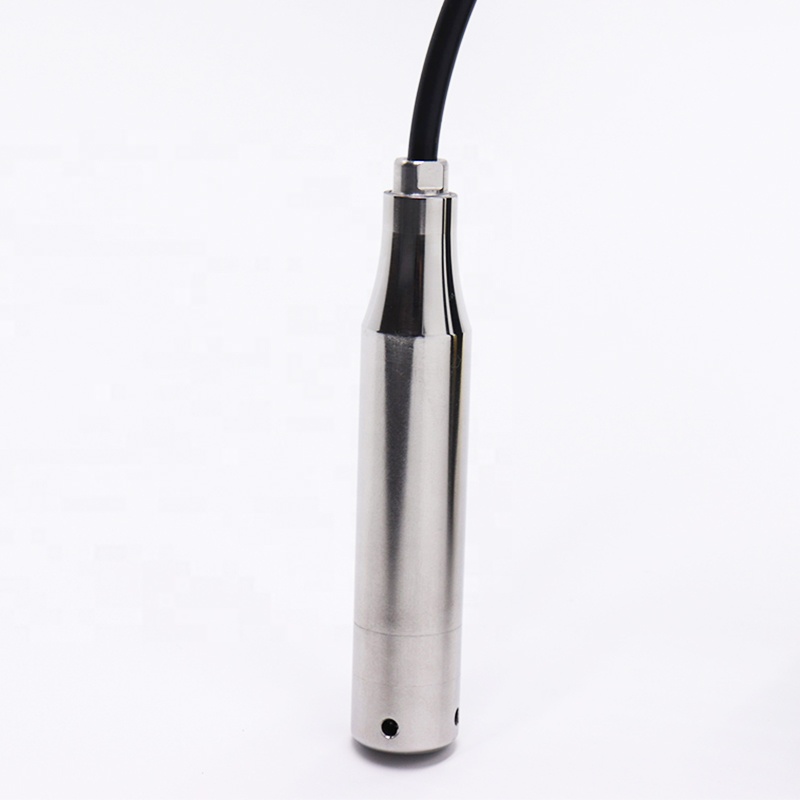

4-20mA 0.5-4.5V Analog Submersible Fuel Level Sensor For Liquid Water

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
